Характеристики
Производитель
—
Hengstler
Гарантия
—
12 месяцев
Сертификаты
—
CE
Доставка
—
от 3 рабочих дней до нашего склада в (DE)
Состояние
—
Новый
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Для подробной информации,
обратитесь пожалуйста к менеджеру
обратитесь пожалуйста к менеджеру
Цена предоставляется по запросу, сроки поставки после актуализации цены товара
Описание
Hengstler RY от Hengstler — продукция Изоляционные реле, которая гарантирует эффективность и устойчивость в работе. Компания Siderus предлагает продукцию, подходящую для различных отраслей и сфер применения
Почему выбирают нас:
- Быстрое оформление заказа и доставка в любую точку РФ
- Поддержка инженеров и менеджеров на каждом этапе сделки
- Честная стоимость без скрытых платежей
- Доставка напрямую от производителя без лишних посредников
- Гарантированно подлинное оборудование напрямую от бренда
☎ Звоните по номеру 8 (800) 600-53-98
Характеристики - Hengstler RY

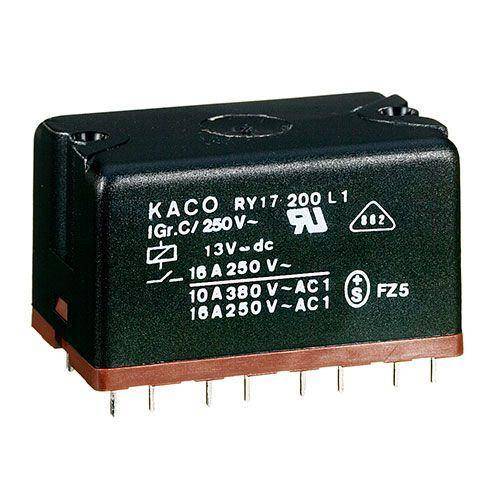

The HENGSTLER RY mains isolation relay is predominantly used in appliances for which two-pole disconnection is prescribed. The two contacts in this relay open by a defined amount of > 3 mm. The creepage and clearance distances between the contacts and the drive system are > 8 mm. The RY mains isolation relay can be supplied with either a DC or an AC monostable drive system.- 2 NOC or 1 NOC+1 NCC
- max. 16 A switching & permanent current
- Drive available as monostable DC or AC
- Load disconnecting relay with 3 mm contact gap
- Ambient temperature -25 to +55 °C
- cULus approval (version with 2 NOC)
- Solder legs or 6.3 mm flat plug connections
- Attachment to 35 mm DIN rail possible
| Function / Application | Mains isolation relay |
| Product line | KACO |
| Relay family | RY |
| Ambient temperature [°C] | -25 ... +55 °C |
| Soldering heat resistance [°C] | 260 °C |
| Max. soldering time [s] | 5 s |
| Pins pre-soldered with | Sn 100 |
| Approval | cULus (only Version with 2 NO) |
| Standards |
|
| Meets the requirements | RoHS |
| Number of NO contacts | 0 ... 2 |
| Number of NC contacts | 0 ... 2 |
| Number of CO contacts | 0 |
| Dimensions L x W x H [mm] | 50,2 x 31,2 x 28,7 mm |
| Housing | dustproof (RT II) |
| Shock resistance [g] | 5 g |
| Puls duration (half sinus) | 11 ms |
| Vibration resistance [g] | 5 g |
| Frequency range [Hz] | 10 - 55 Hz |
| Operating time [ms] | 15 ms |
| Releasing time [ms] | 3 ms |
| Mechanical service life (without load) | 10,000,000 switching cycles |
| Connection type |
|
| Fixing type |
|
| Weight [g] | 55 g |
| Drive system |
|
| Nominal coil voltage [V] | 5 ... 240 V |
| Coil resistance [Ohm] | 12 ... 7,840 Ohm |
| Contact material |
|
| Max. switching current [A] |
|
| Max. switching voltage [V] | 230/240 V |
| Max. switching capacity [VA] |
|
| Electrical service life (with nominal load) | 100,000 cycles |
| Insulation | Reinforced insualtion |
| Function / Application | Mains isolation relay |
| Product line | KACO |
| Relay family | RY |
| Ambient temperature [°C] | -25 ... +55 °C |
| Soldering heat resistance [°C] | 260 °C |
| Max. soldering time [s] | 5 s |
| Pins pre-soldered with | Sn 100 |
| Approval | cULus (only Version with 2 NO) |
| Standards |
|
| Meets the requirements | RoHS |
| Number of NO contacts | 0 ... 2 |
| Number of NC contacts | 0 ... 2 |
| Number of CO contacts | 0 |
| Dimensions L x W x H [mm] | 50,2 x 31,2 x 28,7 mm |
| Housing | dustproof (RT II) |
| Shock resistance [g] | 5 g |
| Puls duration (half sinus) | 11 ms |
| Vibration resistance [g] | 5 g |
| Frequency range [Hz] | 10 - 55 Hz |
| Operating time [ms] | 15 ms |
| Releasing time [ms] | 3 ms |
| Mechanical service life (without load) | 10,000,000 switching cycles |
| Connection type |
|
| Fixing type |
|
| Weight [g] | 55 g |
| Drive system |
|
| Nominal coil voltage [V] | 5 ... 240 V |
| Coil resistance [Ohm] | 12 ... 7,840 Ohm |
| Contact material |
|
| Max. switching current [A] |
|
| Max. switching voltage [V] | 230/240 V |
| Max. switching capacity [VA] |
|
| Electrical service life (with nominal load) | 100,000 cycles |
| Insulation | Reinforced insualtion |
